CV5200 module

CV5200 module

The CV5200 module high-speed and long-distance wifi wireless module focuses on the Internet of Things technology. Its innovative LR-WiFi technology (Long Range WiFi) solves the problem of low-cost, high-performance, high-speed, and long-distance wireless communication. Reshape the boundaries of WiFi transmission.

LR-WiFi: The main technology comes from WiFi, which not only has the characteristics of WiFi easy to use, mature, and can be networked, but also solves the missing problem in WiFi: distance.

LR-WiFi has a hundred times that of LoRa, zigbee and other narrow-band communications and a slightly lower rate than WiFi. It can also be compatible with WiFi through an external wireless network card. It can be widely used in wireless cameras, drones, smart buildings, smart agriculture, and wisdom. Fields such as factories, robots, stage and musical instruments.

Comparison of LR-WIFI and other wireless methods


Comparison of LR-WIFI and other wireless methods

parameter

Traditional WiFi

Bluetooth

Zigbee

LoRa WAN

NB-IOT

802.11ah (Halow)

LR-WiFI

transmission distance

100m~400m

15m~60m

50m~300m

300m~27Km

<20Km

<10Km

≤15Km

transmission speed

100~300Mbps

1M/24Mbps

250Kbps

0.3~50Kbps

20~127Kbps

<10Mbps

≤40Mbps

Operating frequency band

2.4G /5GHz

2.4GHz

2.4G/Sub1GHz

Sub 1GHz

Licensed

Sub 1GHz

2.3/2.4GHz

Node access capability

32

8

6.5W

6.5W

About 20W

8000

32

Network topology

Star/Relays/Mesh

Mesh

Mesh

Star

Star

Star

Star/Mesh

power waste

higher

Lower

low

Lower

Lower

Lower

commonly

Applicable scenario

General family

Office environment

Proximity audio and control

Smart home

Low speed equipment

Large scale low-speed networking

Wide range low-speed direct network access

Large range long-distance transmission

Long distance high rate transmission

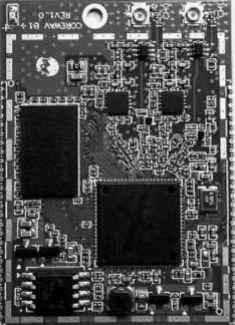

Module introduction


The main parameters

parameter

index

working frequency

2.4GHz(ISM)

throughput

Adaptive, ≤ 30mbps

High transmitting power

29dBm

Measured transmission distance

≥ 8km (no ground to air interference, 2Mbps), noisy ground environment in typical cities, 400 ~ 500m

working temperature

-25~80℃

power waste

2~7W

Receiving sensitivity

Large - 101dbm

delayed

Typical value 2ms

Package size

45.9x33mm

encryption

WPA2 AES

Network topology

Point to point, point to multipoint, mesh

Transmission technology

OFDM TDD LR-WiFi

diversity

2x2MIMO,ML,MRC

FEC

LDPC

Antenna interface

IPEX x2

Interface

Ethernet X2, usbx1, low-speed uartx1 (supporting transparent transmission), gpiox12, pciex1
